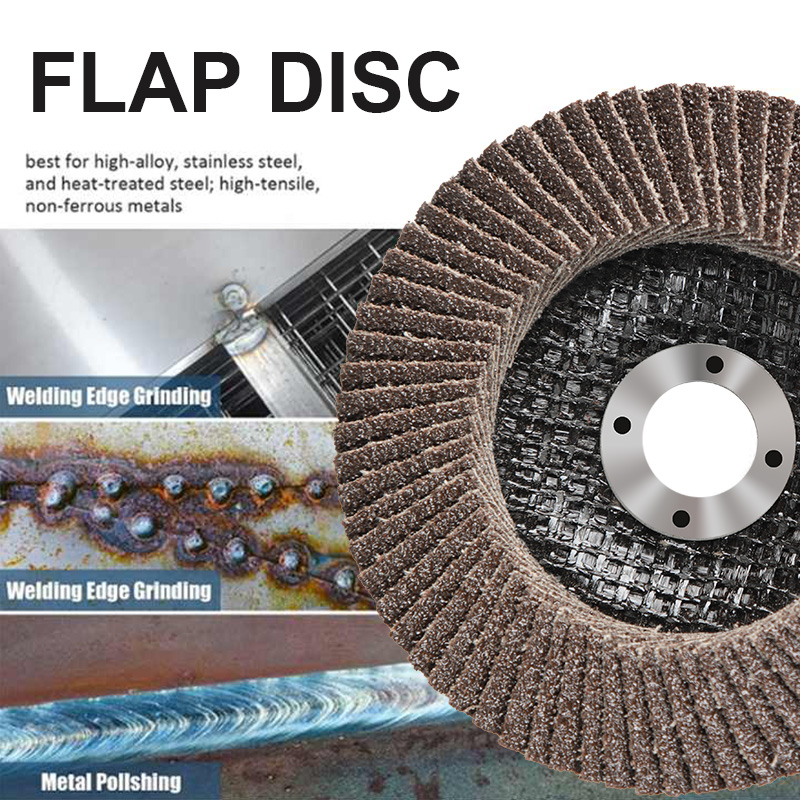

How to Choose the Right Flap Disc for Metal Grinding

Understanding Flap Disc Shapes and Sizes for Optimal Performance

Type 27 vs Type 29: Flat vs Conical Profiles and Contact Surface Area

The flat design of Type 27 flap discs works best when dealing with shallow angles between 0 and 15 degrees. They provide good contact points which make them ideal for smoothing edges and doing fine finishing work. When we look at Type 29 though, its cone-shaped design covers about 35% more area with abrasives. This means it handles those steeper angles from 15 to 35 degrees much better, especially when taking off lots of material from curved or irregular surfaces. For working on steel specifically, standard flat discs typically take away around 1.2 to 1.8 pounds per hour. But the conical ones can actually go as high as 2.5 pounds per hour because they grip the surface better during operation. Most shops find this difference significant when tackling larger projects where time matters.

Matching Disc Shape to Work Angle (0–15° vs 15–35°)

The work angle makes all the difference when it comes to how efficiently something gets ground down. When working between 0 and 15 degrees, those Type 27 discs spread out the pressure pretty evenly across the surface, which helps keep things cool on thinner metal pieces. Move up to angles between 15 and 35 degrees though, and the special shape of Type 29 discs really shines. Their kind of saucer shape stops them from digging into edges too much, so they're great for working on rounded stuff like truck frames or pipe joints where straight discs would just tear things apart. Anyone who has tried grinding stainless steel welds knows this one trick: set that angle around 25 degrees with Type 29 discs and watch the material come off about 28 percent faster than what happens with regular flat discs. Makes sense why so many pros swear by this method these days.

Choosing the Right Diameter: 4-inch to 7-inch and Mini Discs for Reach vs Power

Larger 7-inch discs last 40% longer than 4-inch models on steel plate projects but require grinders with ¥10A power. Mini discs (2–3-inch) deliver 0.8mm precision tolerances in alloy welding applications, ideal for detailed work where access is limited.

Case Study: Type 27 for Edge Work vs Type 29 on Contoured Surfaces

A 2024 shipyard trial on 304L stainless steel pipe systems showed that Type 27 removed weld seams 19% faster on straight edges (0–10°), with 30% less heat discoloration. On curved joints (20–30°), Type 29 completed contours in 8.7 minutes versus 14.2 minutes with Type 27, maintaining a surface roughness of ¥125µm.

Evaluating Backing Materials and Flap Density for Durability and Control

Phenolic, Aluminum, and Composite Backings: Rigidity, Heat Resistance, and Vibration Dampening

The type of backing material makes all the difference when it comes to tool performance during metalworking operations. Phenolic resin backings stand out because they can handle serious heat without breaking down, working well up around 300 degrees Fahrenheit continuously. Plus, these materials absorb vibrations better than most alternatives, which is why shops tend to favor them for fast cutting applications like high-speed steel grinding jobs. Aluminum-backed tools give operators something else entirely though. They're practically unbreakable under pressure, especially when removing large amounts of material from thick stock pieces. That extra stiffness keeps the tool from bending or deflecting mid cut. Composite options fall somewhere between rigid and flexible, offering good durability while still allowing workers to trim those tricky edges needed for contoured parts. What really matters here is how these composite layers protect finished surfaces from scratches during operation. And let's not forget about environmental impact either since aluminum components can be recycled multiple times over, helping manufacturers reduce waste in their day-to-day operations.

High-Density vs Standard Flap Discs: Wear Patterns and Heat Distribution

Flap discs made with high-density construction tend to outlast regular ones by around 40%, thanks to how the flaps are spaced and overlapped during manufacturing. The closer packing helps spread out heat better when working with tricky materials such as stainless steel, which gets damaged easily from hot spots. Regular density discs work great for knocking down material fast on flat areas where overheating isn't really an issue. What makes high-density discs stand out though is their ability to keep delivering good results throughout the job. Standard discs start showing signs of wear along the edges much sooner, often within just over 15 minutes of straight cutting before needing replacement.

Case Study: Phenolic Backing in High-Speed Steel Grinding and High-Density Use on Large Surfaces

One metal fabrication business saw their tool changes drop around 22% when they started using phenolic-backed flap discs instead of regular ones for grinding those tough truck chassis parts. Workers noticed something else too – the machines vibrated much less now, so people could actually work full 8-hour shifts without getting exhausted from constant shaking. When it comes to big surface preparation jobs on shipbuilding plates, these shops have found that high-density zirconia discs do wonders. They manage to remove about half a millimeter evenly from massive 10 square meter surfaces in one go. Standard discs just can't keep up with this kind of efficiency, needing roughly 30% more passes to get similar results.

Strategy: Selecting Backing and Density Based on Tool Load and Finish Requirements

When working with structural steel, it's best practice to go with aluminum backings paired with angle grinders that have at least 10 amps of power. This setup handles the heavier workloads much better. In tight spaces where the angles are really narrow, under about 10 degrees, composite backings tend to work better since they flex just enough to fit those awkward spots. High-density grinding discs should be used when the tool speed exceeds 12 thousand RPMs. This combination keeps cuts consistent even on those tricky curved surfaces that always seem to give problems. Want that nice mirror finish on aluminum extrusions? Standard density ceramic discs do the trick, but don't press too hard - keep contact pressure around 25 psi or lower. Too much force just ruins the surface instead of creating that smooth look everyone wants.

Selecting the Best Abrasive Grit Material for Different Metals

Ceramic Alumina vs Zirconia Alumina vs Aluminum Oxide: Cutting Efficiency and Heat Management

Abrasive choice significantly impacts performance and workpiece integrity. Ceramic alumina removes stock 22% faster than aluminum oxide on hardened steel (Abrasive Tech Journal 2023), with better heat dissipation to prevent metallurgical damage. Key comparisons:

Zirconia alumina’s self-sharpening grains maintain cutting aggression over time, while ceramic alumina’s micro-fracturing exposes fresh abrasive particles—both suited for demanding industrial use.

Matching Grit Material to Metal Hardness and Thermal Conductivity

Hard metals like stainless steel (Brinell 150–200) benefit from ceramic alumina’s heat resistance to avoid work hardening. Aluminum’s high thermal conductivity works well with aluminum oxide’s fast cutting. For titanium alloys (UTS 900 MPa+), zirconia alumina provides durability without excessive heat buildup.

Case Study: Ceramic/Zirconia Blend for Stainless Steel and Aggressive Stock Removal

A marine fabrication team reduced grinding time by 35% using 36-grit ceramic/zirconia blend discs on 316L stainless steel welds. The hybrid abrasive maintained consistent performance over eight-hour shifts, eliminating frequent disc changes associated with standard aluminum oxide.

Trend: Growing Use of Ceramic Alumina in Industrial Fabrication

Ceramic alumina now accounts for 48% of industrial flap disc purchases (Fabrication Insights 2023), driven by demand for lower consumable costs and improved surface consistency. This growth reflects tighter tolerances in aerospace and automotive sectors, where minimizing thermal distortion is critical.

Optimizing Grit Size and Sequencing for Stock Removal and Surface Finish

Grit Range 36–120: Balancing Cut Rate and Finish Quality

The choice of grit makes all the difference when it comes to how fast material gets removed and what kind of surface finish we end up with. Coarse grits around 36 to 40 will slice through stuff about twice as fast as those 80 grit alternatives. Great for knocking off things like mill scale or welding marks, but watch out because these leave pretty deep scratches behind that need extra work to smooth out later. Moving up to medium grits between 60 and 80 offers a nice middle ground where we still get decent cutting speed without sacrificing too much on finish quality. These typically take away somewhere between 0.15 and 0.3 cubic millimeters per second of steel and give us a roughness average (Ra) of about 2.5 to 4 micrometers. When we're ready for our last pass, going with 100 to 120 grit discs gives us that really smooth finish with an Ra value down to 0.8 to 1.2 micrometers, which works well if we plan on applying paint or coatings afterwards.

Case Study: 36-Grit for Mill Scale Removal and 80-Grit for Blending

A structural steel fabricator cut prep time by 35% using 36-grit discs at 4,500 RPM for mill scale removal, followed by 80-grit discs for weld blending. This two-step process maintained ±0.3 mm tolerances and saved 8 minutes per 10-foot beam compared to single-grit methods.

Progressive Grit Sequencing for Smooth Transitions and Cost Efficiency

Using a sequence like 36 – 60 – 80 extends disc life 18–22% compared to jumping from 36 to 80. Each step removes 40–60% of the prior scratch depth, reducing rework. On 1/4" steel plate, this progression achieves production-ready finishes in three passes instead of five to seven with non-sequential grits.

Avoiding Smearing on Aluminum with Proper Grit and Pressure

When grinding aluminum, use 80–100 grit ceramic alumina discs at 10–15° angles and apply less than 10 lbs of pressure to prevent material transfer. High-RPM strategies (6,000–8,500) with intermittent contact keep temperatures below 150°C, avoiding distortion—essential for aerospace components requiring Ra < 0.5 µm.

Application Specific Strategies for Steel and Aluminum Grinding

Preventing Loading and Smearing on Soft Metals Like Aluminum

Aluminum transfers to discs 73% faster than steel due to its low melting point (660°C vs 1370°C). To reduce loading, use open-coat 36–60 grit ceramic alumina discs and maintain a 10–15° work angle. Avoid sustained pressure; studies show improper technique increases smearing risk by 41%.

Maximizing Flap Disc Longevity and Cost Efficiency on Steel

For carbon steel, 60–120 grit zirconia discs offer the best balance, removing 0.8–1.2mm per pass and lasting 30% longer than aluminum oxide. Apply consistent downward force (5–7 lbs) and rotate the disc every 15 seconds to spread wear. Overheating cuts disc life by 55%—pause every 90 seconds to allow air cooling.

Controversy Analysis: Aggressive Grinding Techniques on Aluminum

Some operators use 24-grit discs at 13,000 RPM for fast stock removal, but field tests show this increases material transfer by 63%. Best practice involves starting with light pressure (3 lbs), using 80+ grit abrasives, and inspecting for aluminum buildup every 20 seconds to maintain surface integrity.
