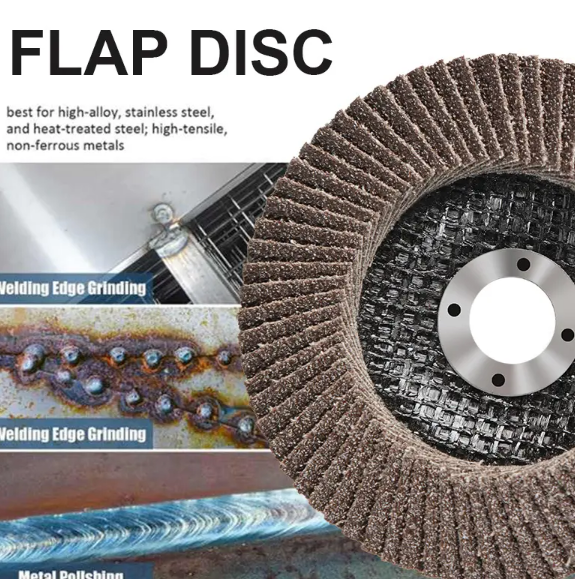

How to choose suitable flap discs for metal processing?

Flap Disc Shape: Type 27 vs Type 29 for Optimal Metal Grinding

Design Differences and Contact Geometry Impact on Cut Rate and Control

The flat design of Type 27 flap discs spreads out the abrasive contact across whatever surface they're working on. This gives better control when grinding at those lower angles between 0 degrees and 15 degrees, plus it helps cut down on vibrations and prevents deep gouges in the material. On the other hand, Type 29 discs have that cone shape with a built-in angle of around 5 to 10 degrees. The way they're designed puts more pressure right at the front edge, which means workers can remove material up to 30 percent faster when dealing with welds or curved surfaces. But there's a catch here too. These discs really need to be kept at an angle higher than 15 degrees throughout the job. If someone doesn't maintain that proper angle consistently, the flaps tend to wear out much quicker and the overall lifespan of the disc gets shortened significantly.

Application Matching: Type 27 for Blending/Flat Surfaces, Type 29 for Welds and Contours

When working with flat surfaces that need precise blending or finishing, go with Type 27 abrasive. The full face contact ensures even material removal across sheet metal, machined parts, or those tricky automotive panels. For tougher jobs like removing stubborn welds or shaping contours around pipes and irregular joints, Type 29 does the heavy lifting better. Fabricators report it cuts down grinding time by about 22% on those curved stainless steel pieces compared to using Type 27. Still, most shops stick with Type 27 for the final touch-ups where scratches just won't cut it and surface quality matters most.

Abrasive Grit Selection: Ceramic, Zirconia, and Aluminum Oxide for Metal Types

Performance Trade-Offs: Stock Removal, Heat Resistance, and Edge Retention

Ceramic alumina has excellent heat resistance and maintains sharpness through micro fracturing, which is really important when working with stainless steel to prevent warping and work hardening issues. The downside? It costs quite a bit more than other options. Zirconia alumina cuts differently though it's great for grinding high pressure carbon steel because it keeps sharpening itself as it works. This makes it good at finding that sweet spot between going fast enough while still lasting reasonably long. Aluminum oxide remains a solid choice for most mild steel jobs since it's affordable and gets the job done reliably. However, after extended use or exposure to intense heat conditions, this material tends to wear down faster compared to some alternatives on the market today.

Metal-Specific Recommendations: Stainless Steel, Carbon Steel, Aluminum, and Titanium

Match grit chemistry to base metal behavior:

• Stainless Steel: Ceramic grit minimizes thermal input and inhibits work hardening.
• Carbon Steel: Zirconia alumina delivers optimal stock removal and tool life.
• Aluminum: Use non-ferrous-specific aluminum oxide with open-coat construction to resist loading.
• Titanium: Low-pressure ceramic grinding prevents surface contamination and hydrogen embrittlement risks.

Grit Size and Flap Density: Balancing Aggression and Finish in Metal Fabrication

Grit Scale Guide: 36-60 for Heavy Grinding, 80-120 for Finishing and Blending

The size of the grit plays a big role in how aggressive the cutting is and what kind of surface gets left behind. Coarser grits ranging from 36 to 60 work great for taking out weld seams quickly, getting rid of rust spots, and removing lots of material from carbon steel pieces. These bigger grits cut through stuff faster while producing less heat when working on thicker sections. When it comes to finer grits between 80 and 120, they're perfect for preparing surfaces ready for paint jobs, giving them a nice polish, or blending different parts together smoothly. This matters a lot with materials sensitive to heat such as stainless steel where overheating can cause problems. Most professionals start with coarser grits then gradually move to finer ones as they go along. This approach saves money on replacement discs and helps achieve better results overall without wearing things down too fast or ending up with an inferior finish.

How Flap Density Affects Conformity, Heat Dissipation, and Tool Life on Curved Metal

The flap density, which basically means how many abrasive flaps there are in a given area, plays a big role in how well a disc works with complicated shapes. Discs with higher density tend to wrap around curves really nicely, spreading out pressure evenly across the surface. This helps avoid deep scratches, cuts down on vibrations during operation, and keeps things cooler overall something that matters a lot when working with materials like thin aluminum or titanium. On the other hand, standard density discs are great for straightforward flat surfaces where aggressive cutting is needed, but they can cause problems on curved areas because of uneven wear patterns and hot spots developing in certain places. When doing longer grinding jobs on contours, these high density options last significantly longer since they reduce friction related wear by roughly 20 percent according to tests done in actual manufacturing environments.

Backing Material Durability: Fiberglass, Plastic, and Hybrid Backings for Industrial Flap Discs

Load Capacity, Flexibility, and Thermal Stability Across High-Pressure Metal Grinding

Most shops still go with fiberglass backing when they need something tough enough for serious metal grinding jobs. It handles weight well, bends just enough without breaking, and dampens vibrations so workers don't get as tired after hours at the bench. Plastic backings made from nylon stuff work great for curved surfaces since they flex better and weigh less, but these materials simply can't stand up to intense pressure and start melting once temps hit around 150 degrees Celsius. Some manufacturers have started making hybrid options lately too, combining fiberglass with plastic or adding aluminum cores inside. These setups stay stable on big flat areas which is nice, although the extra weight does make them harder to handle by hand for long periods. When dealing with really demanding tasks where pressure stays high all day long, reinforced fiberglass with thick mesh layers tends to be the winner overall because it lasts longer relative to how much it weighs and keeps performing even when things heat up.

Flap Disc Application Best Practices by Metal Type

Stainless Steel: Preventing Work Hardening and Contamination

For food grade, pharma, and medical applications, it's essential to use flap discs designed specifically for stainless steel that won't leave behind iron particles. These contaminants can ruin entire batches and lead to recalls down the line. When working, keep pressure light and spin speed under 12,000 RPM max. This helps control heat generation and stops the metal from getting harder during grinding, which wears out discs faster and creates expensive repair needs later on. Most experienced technicians find that angles between 15 and 25 degrees give best results without compromising the metal's properties. Getting these basics right makes all the difference in both quality and long term costs.

Aluminum: Avoiding Loading and Galling with Dedicated Flap Discs

When working with aluminum, go for discs designed specifically for this material that have those special coatings and open coat abrasives which help keep things from sticking and sweep away those pesky soft metal bits effectively. The speed matters too - running them at around 30 to 50 percent slower than what's standard for steel work helps avoid problems like heat buildup causing galling or messing up the surface finish. Stick to dry grinding methods with aluminum discs to prevent any contamination issues between materials. This is really important stuff when it comes to keeping structural strength intact in critical applications like airplane parts or performance car components where even small flaws can be major headaches down the road.

Carbon Steel: Optimizing Speed, Finish, and Disc Longevity

When working with different materials, it's important to adjust the RPM somewhere between 10,000 and 14,000 based on how thick the stock is and how aggressive we want to be. If someone needs to take off about a quarter inch of material quickly, they should go with zirconia discs ranging from 36 to 60 grit while applying around 15 to 20 pounds of steady pressure throughout the cut. After getting rid of the bulk material, switch over to finer grits between 80 and 120 for those final passes. Holding the tool at a very shallow angle of just 5 to 10 degrees makes all the difference in achieving surface roughness values (Ra) between 3.2 and 6.3 micrometers. This approach actually cuts down on or completely removes the need for extra polishing work in structural fabrication projects, saving shops roughly 40% in time and labor costs according to industry reports.
