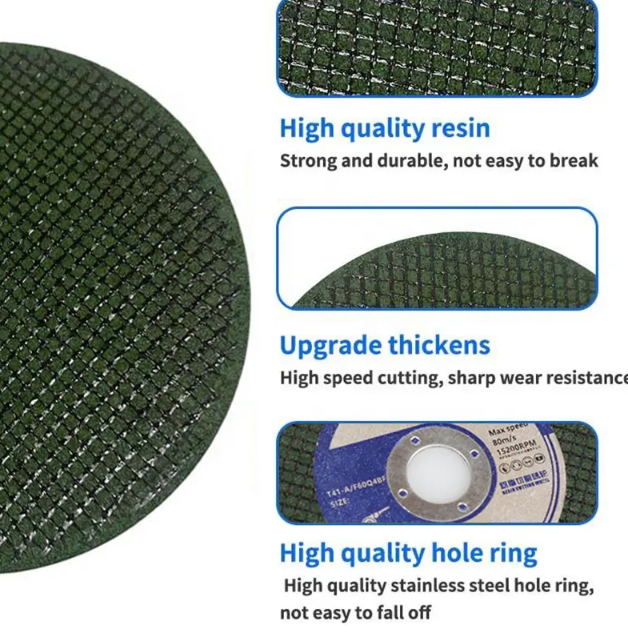

What Are the Safety Tips for Using Cutting Discs?

Understanding Cutting Disc Hazards and Failure Mechanisms

Common Causes of Cutting Disc Breakage: Defects, Abuse, and Misapplication

There are basically three main reasons why cutting discs fail: problems from manufacturing, misuse by operators, and incorrect application. Sometimes discs come straight out of the factory with hidden flaws like uneven materials or tiny fractures that weren't spotted during quality checks. These issues can actually weaken the disc even before it gets used for the first time. Operator mistakes happen too often in practice. When someone applies too much pressure sideways, pushes too hard against the material, or tries to cut something beyond what the disc was designed for, this creates stress points that lead to cracks forming. Then there's the whole issue of using the wrong disc for the job. Specifications matter a lot here. For example, if someone grabs an aluminum cutting disc and tries to cut through hardened steel instead, the heat builds up way faster and makes the disc break apart sooner than it should. Always take a good look at the disc before starting any work. Check carefully for any signs of damage like cracks running across the surface, chips missing from edges, warping when held up to light, or anything wrong with the center hole where it attaches to the tool. Spotting these problems early can prevent serious accidents down the line.

The Physics of Failure: RPM Limits, Tensile Stress, and Thermal Degradation

When things spin faster, the centrifugal force goes up with the square of how fast they're turning. So even a small increase in RPM can really jack up the tensile stress on materials. Take a regular 125 mm resin bonded disc running at around 10,000 RPM for instance it starts feeling centrifugal forces well over 15,000 psi, getting dangerously close to what the bonding material can actually handle. At the same time, when temperatures climb past about 300 degrees Celsius, those phenolic resins start breaking down. The abrasive structure gets weaker and tiny cracks begin spreading through the material. This combination of mechanical strain and heat buildup often results in sudden total failure of the component. To avoid this mess, sticking closely to the RPM limits specified by manufacturers is essential. Also taking short breaks between cutting operations lets things cool down a bit. We've seen time and again that when people push beyond recommended speeds, thermal breakdown happens much quicker than expected, which makes following those RPM guidelines probably the best way to prevent disasters in the workshop.

Pre-Use Verification and Correct Installation of Cutting Discs

Visual and Tactile Inspection Checklist: Cracks, Warping, and Hub Damage

Always inspect grinding discs thoroughly before installation. Get them under good lighting and give them a slow spin to spot those tiny cracks that aren't always obvious at first glance. Lay the disc flat on something level to check if it's warped at all. Look closely at the center hole too - any bending, scratches, or uneven wear patterns could be trouble waiting to happen. Don't forget to check when the disc expires and verify those safety certifications like EN 12413 or ANSI B7.1 standards. Throw away anything with even slight damage. Why? Because studies show about seven out of ten problems in the field start with small issues we missed during setup according to Safety Operations Journal last year. Skip this part? Big mistake. Time constraints won't matter much when equipment fails because of what seems like a minor flaw.

Proper Mounting Technique and Flange Compliance per EN 12413

Correct installation is foundational to safe operation. Match the disc's bore size precisely to the grinder arbor—never use adapters or force-fit mismatched components. Use only clean, undamaged flanges compliant with EN 12413, which specifies minimum diameter ( ⅓ disc diameter), flatness, and surface finish to ensure uniform clamping force.

Center the disc carefully between flanges—do not distort or torque it into alignment. Conduct a 30-second test run at minimum RPM behind a safety barrier before engaging the workpiece.

Operating Discipline: Speed Matching, Feed Control, and Workpiece Stability

Why Exceeding Maximum RPM Is the #1 Cause of Catastrophic Cutting Disc Ejection

Going beyond the maximum rated RPM is still the number one reason discs explode during operation. When a tool spins too fast, it creates uneven stress across the disc material. This stress tends to build up at weak spots such as the center hub area or any existing manufacturing defects. The moment these materials reach their breaking point, the disc literally falls apart within fractions of a second. Fragments flying out can hit speeds well over 200 kilometers per hour, something regular safety gear simply cannot stop. Before turning on an angle grinder, check if the tool's idle speed matches what's printed on the disc itself. Don't fall into the trap of thinking similar sized discs work interchangeably just because they look alike.

Safe Feed Rate, Angle, and Clamping Practices to Minimize Side Loading

The disc needs to be positioned at right angles to what's being cut, applying even pressure throughout the process. Don't try to force it through or twist the blade during cutting operations. When side forces act on the disc, they cause bending which leads to stress points and heat buildup around specific areas of the tool. This extra heat breaks down the bonding material faster than normal. Keep those entry and exit angles below 15 degrees whenever possible. The vises used should handle weights twice what the piece actually weighs. Feed rates matter too - about 2 to 3 centimeters per second works well when working with mild steel materials. If dealing with awkward shapes or unstable pieces, consider adding magnetic bases alongside regular clamps or invest in specially made jigs for better stability. Studies using thermal cameras show that good clamping techniques can lower disc temperatures by roughly 40 percent, which helps maintain the structural integrity of the bonding compounds over time.

Personal Protective Equipment and Engineering Controls for Cutting Disc Use

PPE is really the last line of defense when it comes to workplace safety, though it should always fit into the bigger picture of control measures. The basics include those ANSI Z87.1 rated safety glasses with side protection, especially important during operations where debris might fly around. For cutting tasks that pose serious risks, full face shields become necessary. Gloves matter too - workers need ones that meet at least ISO 13997 Level A2 standards for cut resistance. What people wear matters just as much. Loose clothes can get caught in machinery, so tight fitting garments without extra bits like long sleeves or neckties make sense. Jewelry should stay at home on workdays because even a simple bracelet can cause trouble near moving parts.

Engineering controls form the first line of defense against hazards. Spark deflectors that can be adjusted help keep hot debris contained during operations. Vacuum systems built into equipment manage to catch about 95% of airborne particles according to OSHA data from 2023. Sound dampening enclosures bring down noise levels so workers aren't exposed to more than 85 decibels A-weighted. Workstations need to be stable above all else. Magnetic clamps work well for some applications while heavy duty vises or fixed anchors are better suited for others. Emergency stops should always be right there where someone can grab them quickly when needed. Putting these engineering measures together with good personal protective equipment cuts the seriousness of incidents by around 74% instead of just relying on PPE. But this only works if everything stays within the manufacturer's specified operating parameters throughout use.
